Product model: W1-A

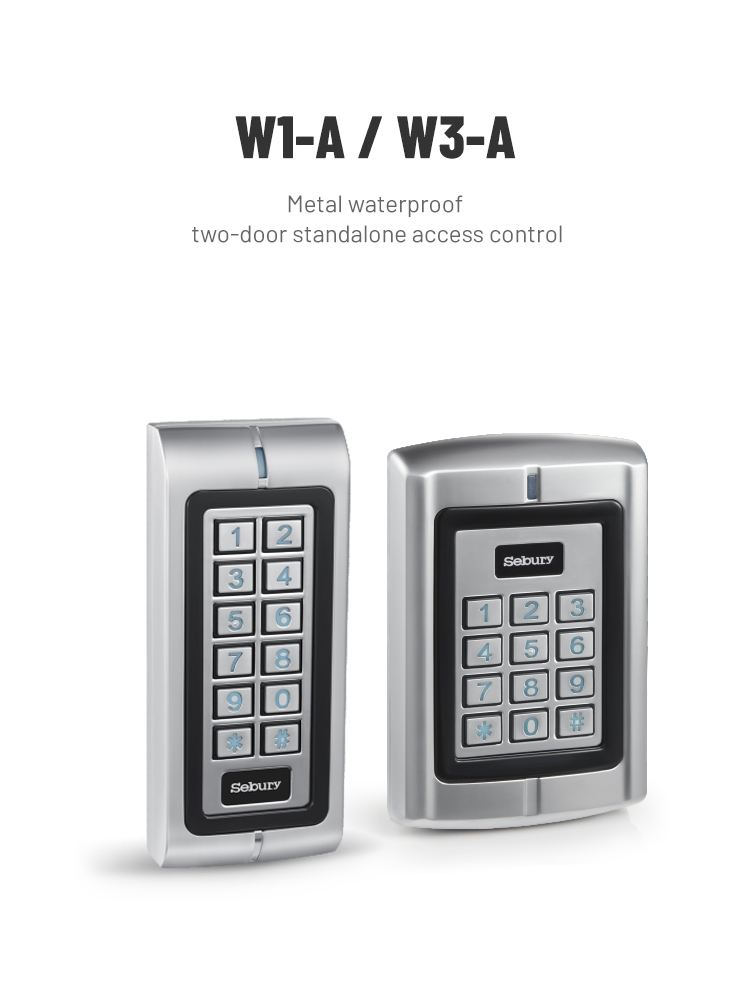

Product name: Metal Waterproof Keypad & RFID Access Control for Two doors
Working temperature: - 40 ~ 60 ° C
Card reader type: EM
Product size: 135 * 58 * 26 mm

This Access control is anti-vandal and waterproof design. It support PIN and 125KHZ EM card, 3 access modes optional. It usually installed on the courtyard, bank, prison etc. where need hign level security. And also can be used for automatic gate by its relay built-in.

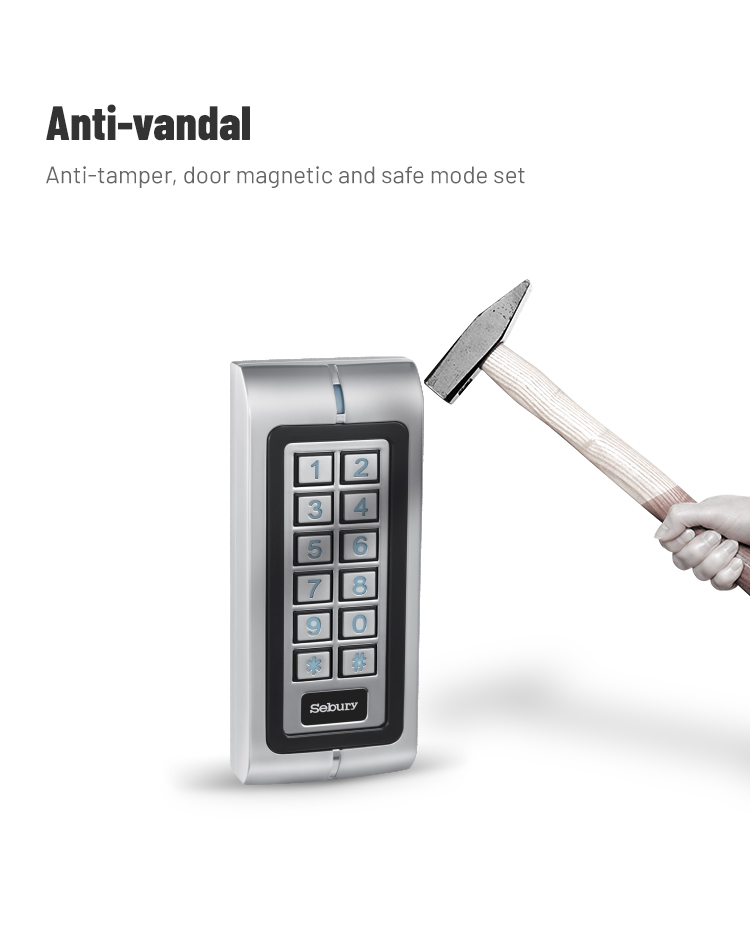

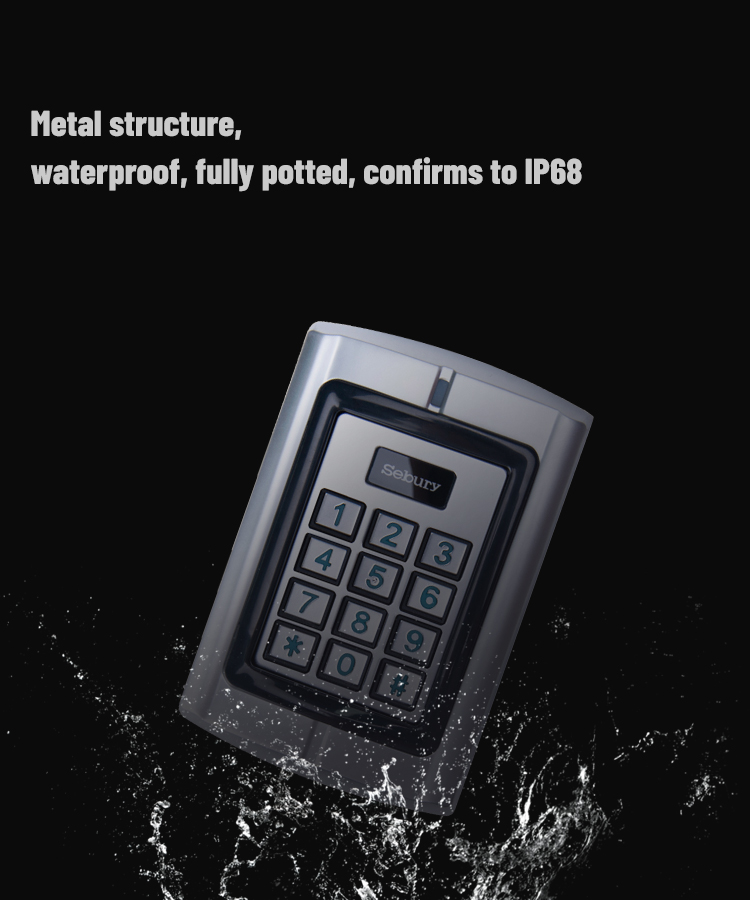

Metal structure, anti-vandal, more secure , waterproof design

· Protective properties: IP65 fully-potted.

· Backlight keypad.

· Two-relay operation.

· Pulse mode, toggle mode.

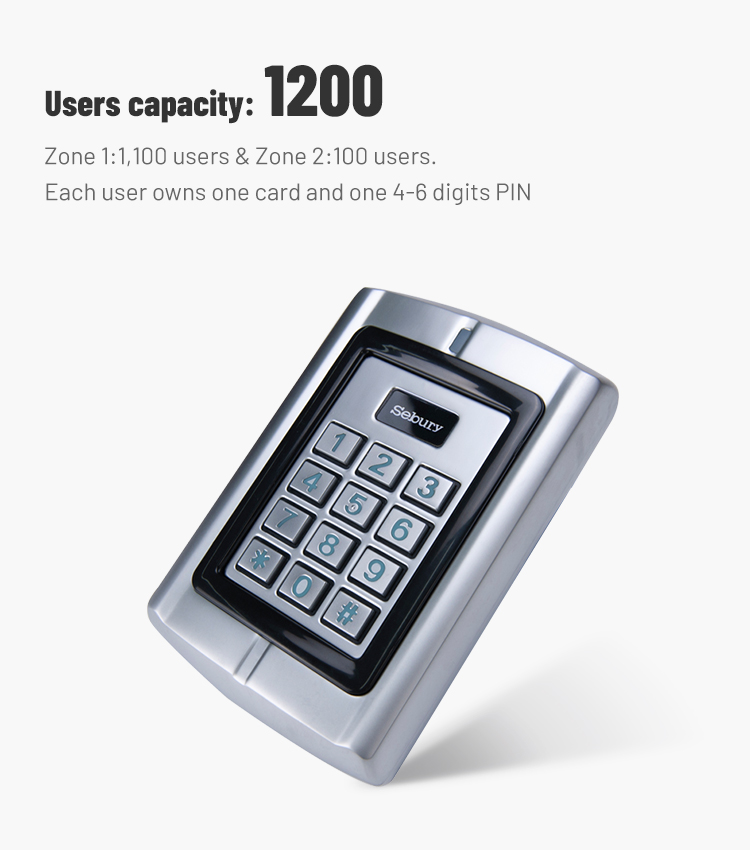

· Up to 1,200 users (Zone 1:1,100 users & Zone 2:100 users).

· Support 3 Modes Access: Card, PIN, Card+PIN.

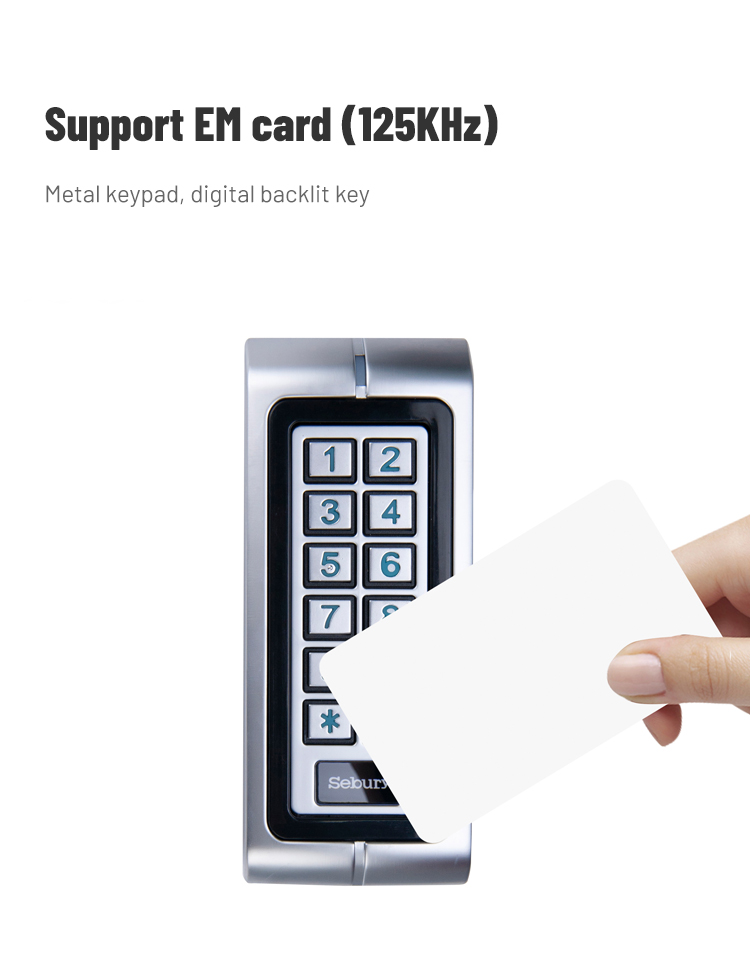

· Card Type: 125KHz EM, PIN length: 4-8 digits.

· Operating Voltage: 12-18V AC/12-24V DC.

· Support door bell connection (Zone 2).

· Very low power consumption ( ≤35mA), long service life and stable performance.

· Application for High-Security Places: warehouses, banks, prisons, etc.

· High Speed Search: filled with 1,200 users, the search time < 0.1 seconds.

· With anti-disassemble alarm function, anti-static interference 15KV.


· Operating Voltage: 12-18V AC/12-24V DC

· Up to 1,200 users (Zone 1:1,100 users & Zone 2:100 users)

· Support 3 Modes Access: Card, PIN, Card+PIN

· Card Type: 125KHz EM

· Adjustable Door Relay Time: 1-99s

· Static Current: ≤35mA

· Card Read Rang: 3-6cm

· Reader Induction Time: ≤0.1s

· Operating Temperature: -40℃~60℃

· Operating Humidity: 0-95%

· Lock Output Load: 1A

· Alarm Output Load: 3A

· Antistatic: 15KV

· Environment: Conform to IP65

· Wiring Length: 90-100cm

· Dimension: 135mm×58mm×26mm
