Product model: R1
Product name: Matted shell waterproof reader
Working temperature: - 40 ~ 60 ° C
Card reader type: EM, HID ,IC
Product size: 120 * 85 * 23 mm

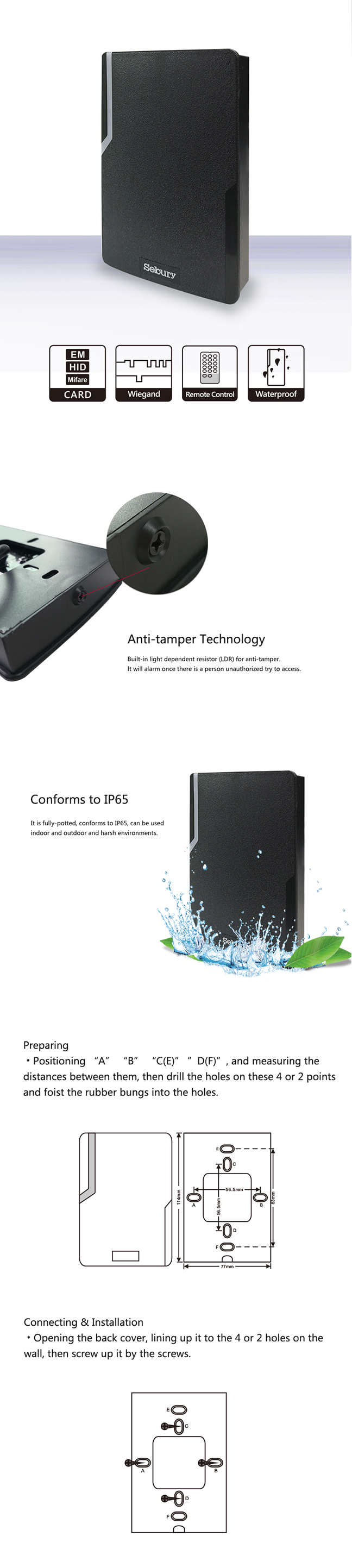

· Plastic matte technic, fully potted, confirms to IP65
· Support EM, HID card(125KHz), or IC, CPU card(13.56MHz,ISO14443A)
· Wiegand 26 output, other format need to be customized, ranging from Wiegand 26 to 37.
· Additional functions: anti-vandal, LED and buzzer controlled via external controller.

· Input voltage: DC 12V±10%
· Standby current: ≤30mA
· Operating humidity: 0-95% (non-condensing)
· Dimension: 120mm × 85mm × 23mm

R1-H&EM:
· Card: EM, HID card (125KHz)
· Operating temp. range: -40° C~60° C (-40~140° F)
R1-M:
· Card: IC, CPU card (13.56MHz, ISO14443A)
· Operating temp. range: -20° C~60° C (-4~140° F)
